Cuadros simple 2011

MODELO WEAVER

20.8 - 21.0 - 21.2

Mitch Yeates Signature frame. Heat treated 4130 Sanko chromoly, double butted toptube & downtube. Tapered chain and seat stays. - Top Tube:20.6", 20.8", 21" or 21.2" - Chain stay:13.59" to 14.09" (345 to 358 mm) - Head Tube:74.5 degrees - Seat Tube:71 degrees - Stand over:10.67" (271 mm) - BB Style:Mid, reduced in the middle. - BB Drop:1.575" (40mm) - Dropouts:Tiny, 5mm thick, heat treated. - Weight:2.1kg (for the 21.2" version). - Other: - Removable brakemounts - 2.1" (55mm) tyre clearance – Tapered seattube – Internal gusset at TT/HT junction - CNC logo on headtube - Star cutouts in SS & CS endcaps - Colors: - Matt Black - Red

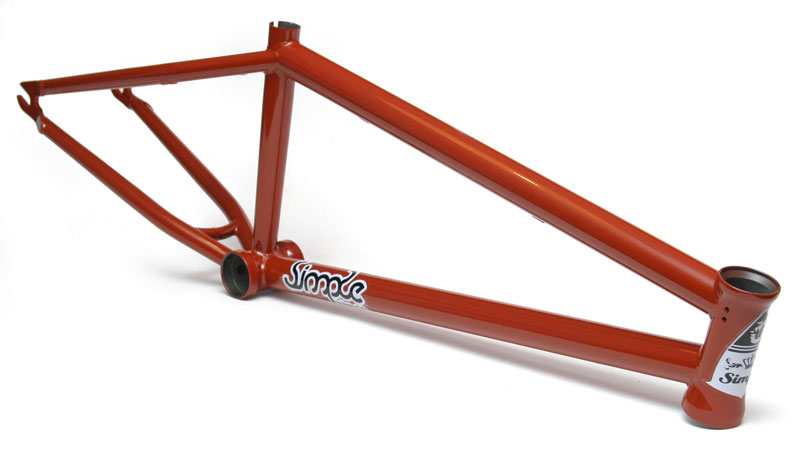

MODELO EZ 20.6 - 20.9 - 21.2

Eduards Zunda Signature Frame. Heat treated 4130 Sanko chromoly, double butted toptube & downtube. Tapered chainstays and seatstays. - Top Tube:20.6", 20.9" or 21.2" - Chain stay:13.58" to 14.21" (345 to 361 mm) - Head Tube:75 degrees - Seat Tube:71 degrees - BB Style:Mid, reduced in the middle. - BB Drop:1.59" (40.5mm) - Dropouts: - One Piece design - 5mm thick – heat treated - Weight: 2.0kg (for the 21.2" version) - Other: - Removable brakemounts - 2.3" (55mm) tyre clearance – Internal gusset in TT/HT Junction - CNC logo on headtube - Tapered seattube - Colors: - Black - Cherry Red

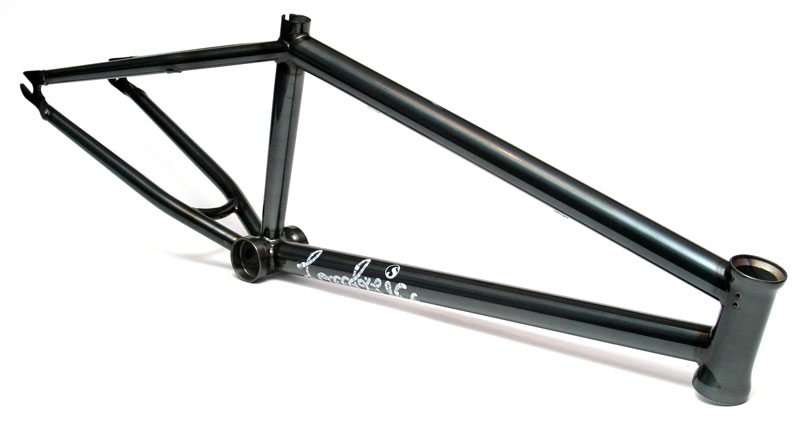

MODELO LOMBRIC

TALLAS 21.0 - 21.25 - 21.5

We are proud to introduce the new Jeremy Muller signature frame, the Lombric.

This is a frame with trails in mind, although Jeremy rides just about anything.

It will be available in 21 or 21.5 tt, and features a 75’ ht, heat treated 4130 Sanko chromoly, internal gusset at tt/ht and dt/ht junction,
double butted tubes, tapered seat tube, tapered rear triangle (ss and cs), removable brakemounts, one-piece dropouts, 358mm cs center to center and 38.1mm bb height.
